Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: ZHUO HENG
Model Number: ZH65/70/85/95
Type: Feed Pellet Machine
Voltage: 380V or cutomizable
Power(W): 40-181kw
Dimension(L*W*H): 21*2.8*3.0m
Weight: 3000 kg
Certification: CE BV TUV GOST
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main motor: Simens,or customizable
Inverter: Delta, ABB, LG
Relays: Weidmuller, Schneider, customizable
Body Material: stainless steel
payment assurance: Alibaba Trade Assurance System
Product types: pellets,particles ,tablets,etc
Application: floating and sinking fish feed
Hourly output: 150kg-1200kg
Product name: Floating pond fish feed extruder machine
Experience of engineers: 15-20 years
Packaging & Delivery
| Packaging Details: | wooden case
wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery
Packing for Floating pond fish feed extruder machine |
|---|
| Delivery Detail: | Shipped in 30 days after payment |
|---|
Product Description
Our Pelleted floating fish feed extruding machinery are designed to process a wide range of recipes.Manufacturers can produce any number of textures, shapes, sizes, flavors and colors.
Our goal is to provide flexible and scalable production tools to produce high-quality, tasty and nutritional pet foods and fish feed.

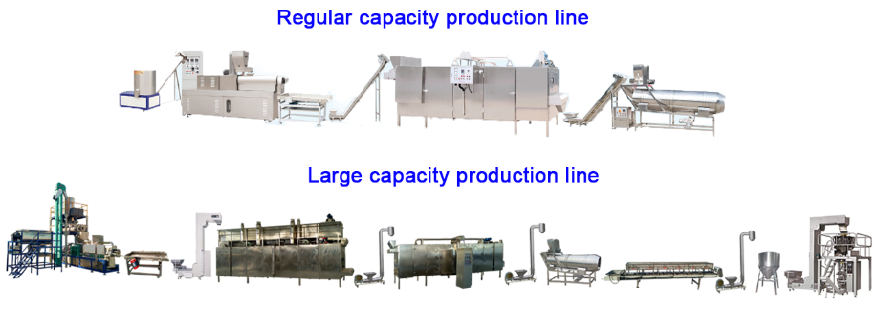

1. Production line details
Capacity | 120kg-4000kg |
Power Supply | Based on 380V 50 Hz 3 phase. Customized according to your local power. |
Machine details | 1.Stainless steel,:201, 304, 316, on request 2. Electric parts can be ABB, Delta, Fuji, Omron, Siemens; Famous brand as your demand. |
Certificate | CE,GOST,TUV,BV |
Raw Material | Corn meal, flour, soy meal, peanut meal. Bone /meat/fish/shrimp powder, etc. |

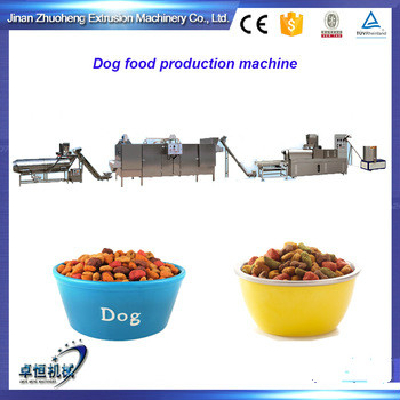

Product type | Dog food, cat food, livestock feed; Floating fish feed & sinking fish feed |
Product shape | Pet food: Pellet Fish feed: Granule, Pellet, stick, tablet |
Product size | Minimum Diameter: 1.5mm |
2. Advantages
1.We specialize in high capacity extruder which can reach 4000kg/h
2.The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.
3.With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.
4.SIMENS (China) Motor.
5.It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the food process.
6.Adopted the Delta inverters, ensure the extruder better running.
7.The gearbox has automatic lubrication function, which prolong service life of gears.
8.Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.
3.Technical Parameters
Model | Installed power | Real power | Capacity | Dimension |
ZH65 | 35 KW | 22kw | 120-150kg/h | 39000x1200x2200mm |
ZH70 | 50kw | 37kw | 200-250kg/h | 41000x1500x2200mm |
ZH85 | 110kw | 75kw | 300-500kg/h | 43000x3500x4300mm |
ZH95 | 151kw | 110kw | 1-1.2 ton/h | 4700x1900x4800mm |
ZH135 | 425kw | 335kw | 3-4 ton/h | 5200*2000*4200mm
|
Our Services
Pre-sale service | Communicating with customers and learn your requirement |
Providing professional advisory services |
Providing solutions according to customers’ requirement, And offer the quotation |
Providing on-site visit to our factory |
Providing samples |
Selling service | Confirm every terms and details and sign contract with customers |
Manufacturing machines according to contract. |
Trial running after production. |
Packing machines and delivery on time |
Providing relevant documents for Custom clearance (If necessary) |
After-sale service | Send engineers for installation, trial running and training workers. |
Handling the problems occurred during use. |
Supply spare and wearing parts on discount. |
Help customers to solve any other problems |
Certifications
Business established more than 10 years ago, is considered as one of Chinese most respected and experienced suppliers of snack food equipment, accessories and services.We also received a number of certification
FAQ
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food & feed extrusion machine
2.What's the price of your machines?
You can inquiry to us directly
3.What is your payment terms?
Recommend to use Alibaba’s Trade Assurance.
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C before shipment.
4. Can we provide the formula to you?
We can provide basic formula for producing the food etc. And help customer to produce good quality food according customer’s detailed formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your factory size.We can design the layout according to your factory size.
